Appropriate Maps

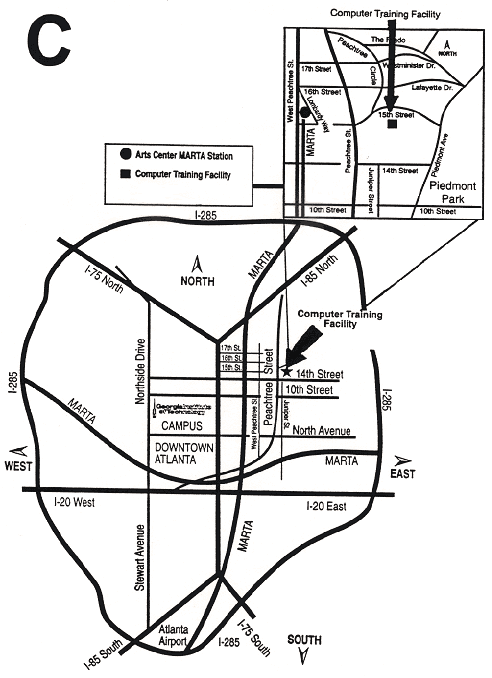

Example C

  • Text large and clear
  • Only major identifying streets are names
  • Blown-up detail map of location effective
  • Good presentation of location relative to city perimeter
  • Subject of map clearly identified
  • Directional arrows clearly visible
  • Shows proximity of subject property to pertinent campus
  • Limited extraneous information
  • Could be further improved by:
    • Show only North directional arrow
    • Text identifying subject could be larger
    • Clearly identify city name

Example C

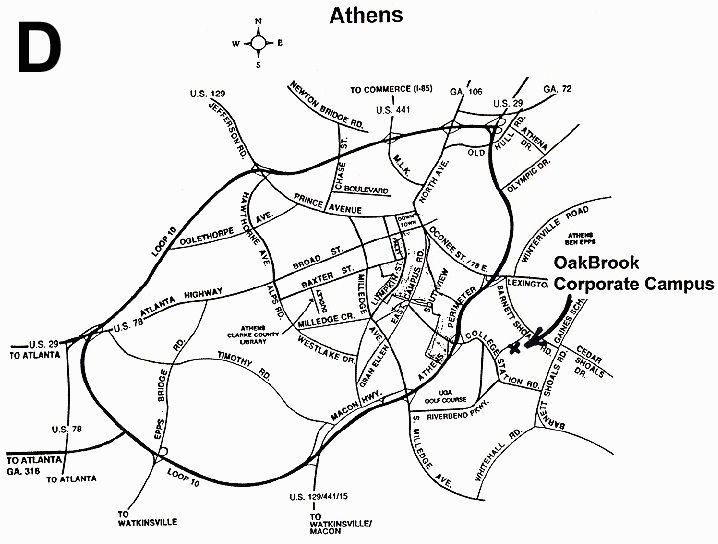

Example D

  • Text large and clear
  • Only major identifying streets are names
  • Good presentation of location relative to city
  • Subject of map clearly identified
  • Directional arrows clearly visible
  • Limited detail
  • Could be further improved by:
    • Show only North directional arrow
    • Show proximity of subject property to pertinent campus
    • Show less extraneous information, fewer secondary streets

Example D

Deficient Maps

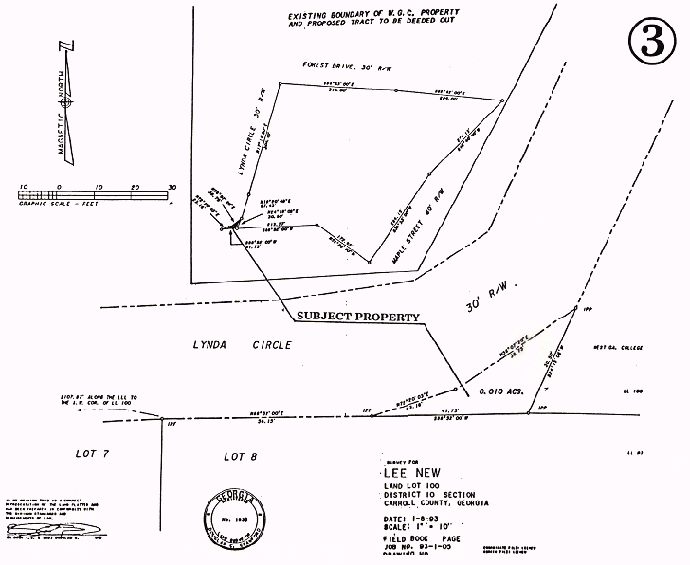

Example 3

  • Survey does not include proper information for locational map
  • Cannot tell where property is
  • Extraneous information included
  • Text too small
  • Confusing

Example 3

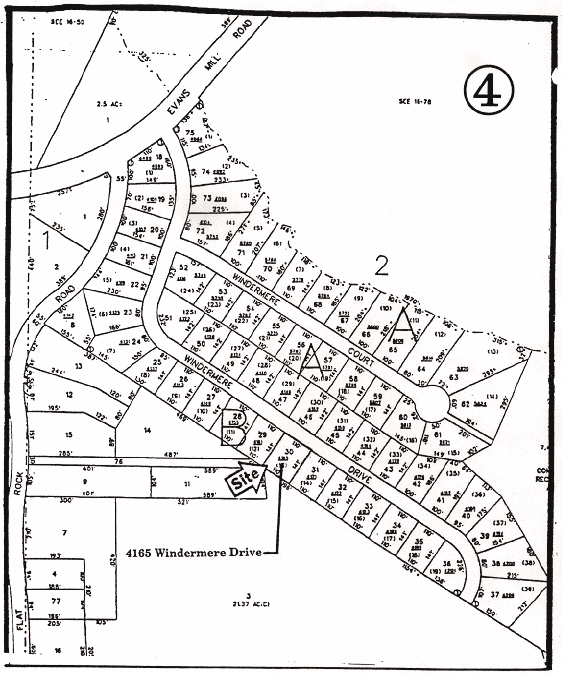

Example 4

  • Plat does not include proper information for locational map
  • Cannot tell where property is
  • Extraneous information included
  • Text too small
  • Confusing
  • Too much detail
  • No directional arrow

Example 4
